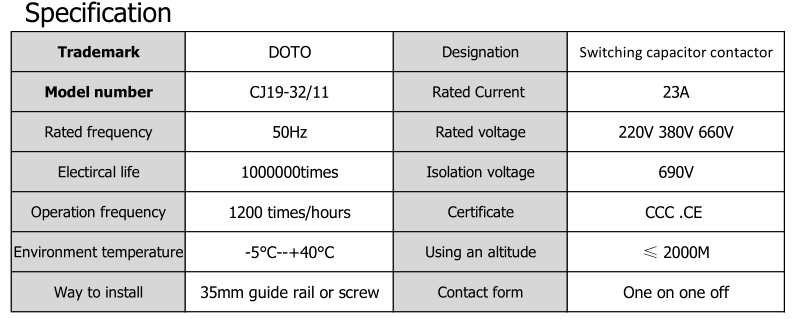

Quick Details
Place of Origin：Zhejiang, China
Brand Name：TENGEN
Model Number：CJ19-32/11
Electricity Type：AC
Number of Pole：3
Phase：3
Main Circuit Rating Voltage：220V,380V,660V
Main Circuit Rating Current：23A
Certificate：CCC CE
Product Name：CJ19 series AC contactor for switching shunt capacitor
Type：AC Contractor
Rated Frequency：50Hz/60Hz
Standard：CE/IEC60947-4-1
Surge limiting capacity：20le
Ambient air temperature：-5℃~+40℃
Application：Used to put a low voltage parallel connected capacitor in operation

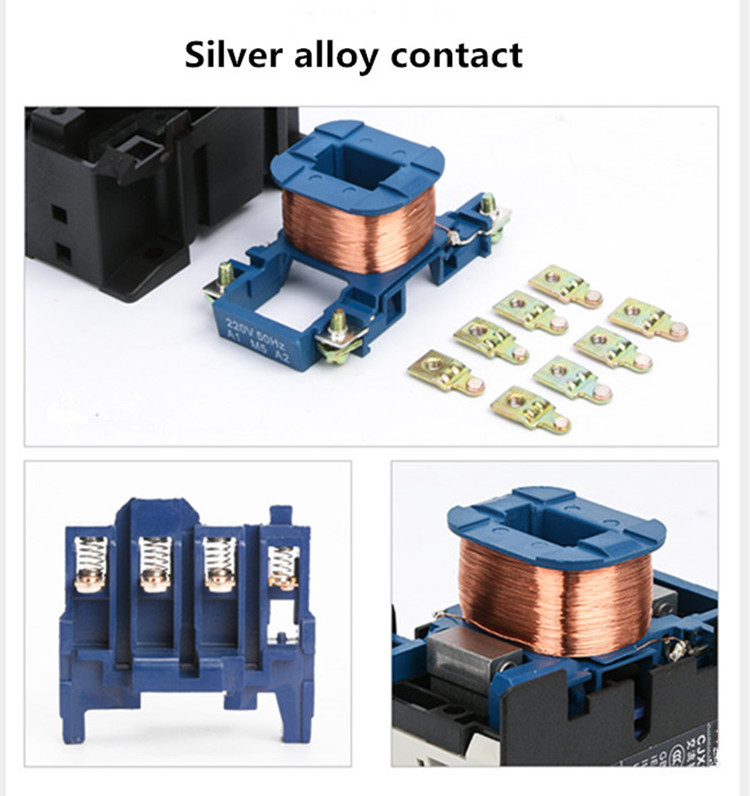

Contact：Silver Contact
Way to install：35mm guide rail or screw
Packaging & Delivery
Packaging Details：
Standard Export Carton Package or According to customers' requirements
Factory CJ19-32 magnetic 3p ac capacitor switching contactor
Port：Ningbo Shanghai Port China
|
Quantity(Pieces)
|
1 - 300
|
>300
|
|
Est. Time(days)
|
7
|
To be negotiated
|
Factory CJ19-32 magnetic 3p ac capacitor switching contactor
CJ19 series changeover capacitor contactor is mainly applicable to a power line of AC 50Hzor 60Hz, rated working voltage up to 380V. It is used to put a low voltage parallel connectedcapacitor in operation or switch it off in a low voltage reactive power compensation device. Thecontactor is equipped with a surge suppressor, which can effectively reduce the surge currentpassing through the capacitor at weitching on and suppress the over-voltage at switching off.The product is in conformity with the standards IEC947-4-1.
